75 - 157.5kW Electric HPU

ACE 110kW Safe Area Closed Loop Electric HPU

ACE 110kW Safe Area Closed Loop Electric HPU

Model Type: 315

  • Overall Dimensions 2520mm long x 1350mm wide x 2200mm high
  • Maximum Rated Working Pressure 345 Bar
  • Maximum Oil Flow 495 L/min at 1485 RPM

ACE 110kW Safe Area Closed Loop Electric HPU

ACE 110kW Safe Area Closed Loop Electric HPU

Model Type: 317

  • Overall Dimensions 2520mm long x 1350mm wide x 2180mm high
  • Maximum Rated Working Pressure 250 Bar
  • Maximum Oil Flow 488 L/min at 50 Hz

ACE 110kW Safe Area Closed Loop Electric HPU

ACE 110kW Safe Area Closed Loop Electric HPU

Model Type: 533

  • Overall Dimensions 2250mm long x 1340mm wide x 2200mm high
  • Maximum Rated Working Pressure 250 Bar
  • Maximum Oil Flow 488 L/min at 1450 RPM

ACE 110kW Safe Area Closed Loop Electric HPU

ACE 110kW Safe Area Closed Loop Electric HPU

Model Type: 668

  • Overall Dimensions 2250mm long x 1350mm wide x 2200mm high
  • Maximum Rated Working Pressure 300 Bar
  • Maximum Oil Flow 177 L/min at 1490 RPM

ACE 110kW Safe Area Closed Loop Electric HPU

ACE 110kW Safe Area Closed Loop Electric HPU

Model Type: 692

  • Overall Dimensions 2250mm long x 1350mm wide x 2300mm high
  • Maximum Rated Working Pressure 250 Bar
  • Maximum Oil Flow 195 L/min at 1485 RPM

ACE 110kW Safe Area Closed Loop Electric HPU

ACE 110kW Safe Area Closed Loop Electric HPU

Model Type: 878

  • Overall Dimensions 2500mm long x 1300mm wide x 2210mm high
  • Maximum Rated Working Pressure 250 Bar
  • Maximum Oil Flow 194 L/min at 1484 RPM

ACE 110kW Safe Area Closed Loop Electric HPU

ACE 110kW Safe Area Closed Loop Electric HPU

Model Type: 879

  • Overall Dimensions 2500mm long x 1350mm wide x 2210mm high
  • Maximum Rated Working Pressure 250 Bar
  • Maximum Oil Flow 495 L/min at 1486 RPM

ACE 110kW Safe Area Closed Loop Electric HPU

ACE 110kW Safe Area Closed Loop Electric HPU

Model Type: 926

  • Overall Dimensions 2500mm long x 1350mm wide x 2200mm high
  • Maximum Rated Working Pressure 345 Bar
  • Maximum Oil Flow 588 L/min at 1785 RPM

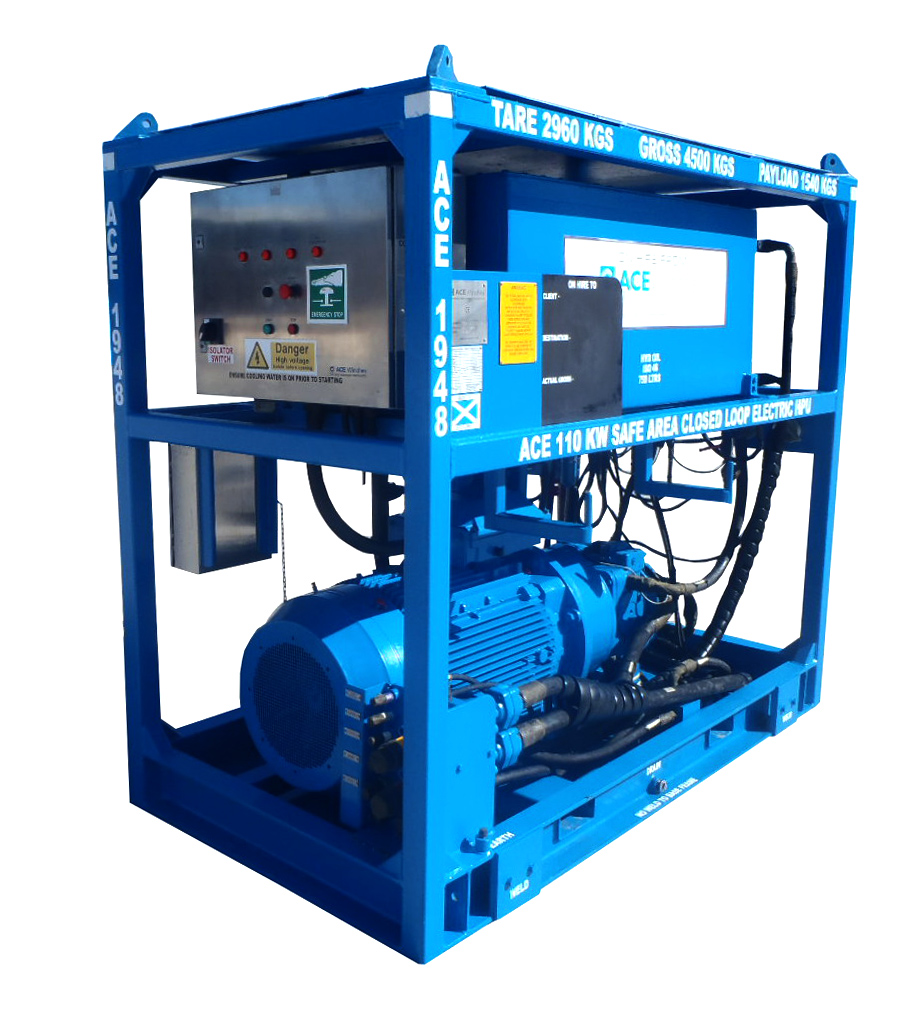

ACE 110kW Safe Area Closed Loop Electric HPU

ACE 110kW Safe Area Closed Loop Electric HPU

Model Type: 1948

  • Overall Dimensions 2500mm long x 1341mm wide x 2200mm high
  • Maximum Rated Working Pressure 345 Bar
  • Maximum Oil Flow 496 L/min at 1488 RPM

ACE 117.5kW Safe Area Closed Loop Electric HPU

ACE 117.5kW Safe Area Closed Loop Electric HPU

Model Type: 1947

  • Overall Dimensions 2500mm long x 1350mm wide x 2200mm high
  • Maximum Rated Working Pressure 350 Bar
  • Maximum Oil Flow 496 L/min at 1488 RPM
