20 - 50 Tonne WLL

ACE 25 Tonne WLL Hydraulic Drum Winch

ACE 25 Tonne WLL Hydraulic Drum Winch

Model Type: 1341

  • Overall Dimensions 2750mm x 2880mm x 2381mm
  • Maximum Wire Capacity 600 metres of 40mm wire rope

ACE 30 Tonne WLL Hydraulic Drum Winch

ACE 30 Tonne WLL Hydraulic Drum Winch

Model Type: 877

  • Overall Dimensions 2490mm x 2150mm x 1770mm
  • Maximum Wire Capacity 581 metres of 38mm wire rope

ACE 30 Tonne WLL Zone 2 Hydraulic Drum Winch

ACE 30 Tonne WLL Zone 2 Hydraulic Drum Winch

Model Type: 483

  • Overall Dimensions 2490mm x 1935mm x 1740mm
  • Maximum Wire Capacity 414 metres of 38mm wire rope

ACE 35 Tonne WLL Hydraulic Drum Winch

ACE 35 Tonne WLL Hydraulic Drum Winch

Model Type: 481

  • Overall Dimensions 3175mm x 1200mm x 1640mm
  • Maximum Wire Capacity 272 metres of 38mm wire rop

ACE 35 Tonne WLL Hydraulic Drum Winch

ACE 35 Tonne WLL Hydraulic Drum Winch

Model Type: 811

  • Overall Dimensions 3155mm x 1195mm x 1640mm
  • Maximum Wire Capacity 377 metres of 32mm wire rop

ACE 35 Tonne WLL Hydraulic Drum Winch

ACE 35 Tonne WLL Hydraulic Drum Winch

Model Type: 1339

  • Overall Dimensions 2935mm x 2138mm x 2387mm
  • Maximum Wire Capacity 549 metres of 40mm wire rope

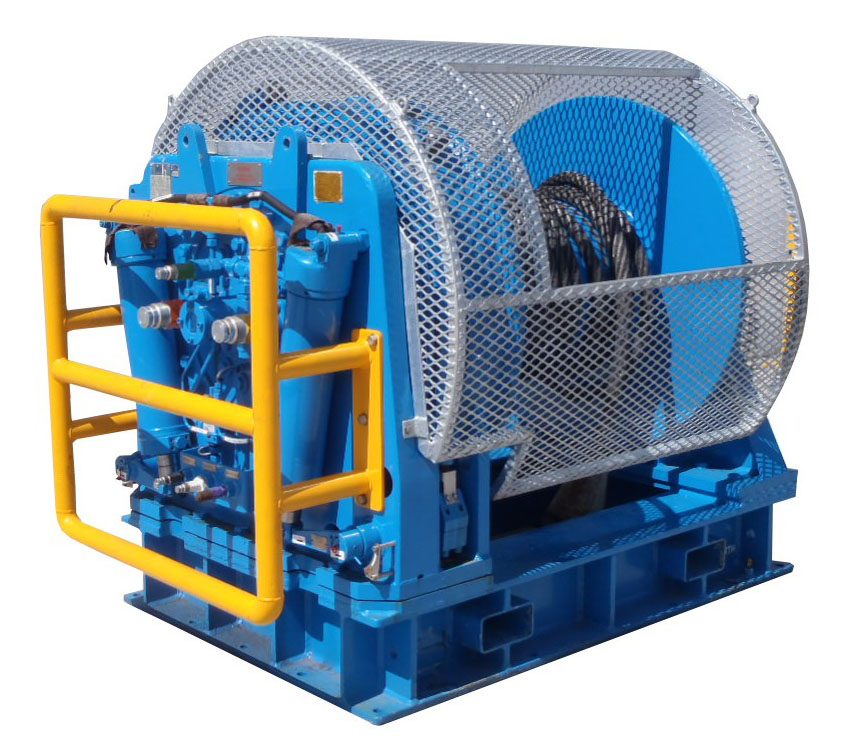

ACE 35 Tonne WLL Zone 2 Hydraulic Drum Winch

ACE 35 Tonne WLL Zone 2 Hydraulic Drum Winch

Model Type: 2382

  • Overall Dimensions 1866mm x 1413mm x 1633mm
  • Maximum Wire Capacity 638 metres of 28mm wire rope
360° View

ACE 40 Tonne WLL Zone 2 Hydraulic Drum Winch

ACE 40 Tonne WLL Zone 2 Hydraulic Drum Winch

Model Type: 2424

  • Overall Dimensions 1920mm x 2540mm x 1780mm
  • Maximum Wire Capacity 933 metres of 28mm wire rope

ACE 50 Tonne WLL Hydraulic Drum Winch

ACE 50 Tonne WLL Hydraulic Drum Winch

Model Type: 498

  • Overall Dimensions 3550mm x 2900mm x 2105mm
  • Maximum Wire Capacity 1506 metres of 28mm wire rope

ACE 50 Tonne WLL Hydraulic Drum Winch

ACE 50 Tonne WLL Hydraulic Drum Winch

Model Type: 2390

  • Overall Dimensions 3985mm x 3820mm x 3750mm
  • Maximum Wire Capacity 3420 metres of 40mm wire rope
360° View

ACE 20 tonne WLL Hydraulic Drum

ACE 20 tonne WLL Hydraulic Drum

Model Type: 557

  • Overall Dimensions:  2815mm long x 2218mm wide x 1585mm high
  • Maximum Wire Capacity: 1471 metres of 26mm wire rope

ACE 30 tonne WLL Hydraulic Drum Winch

ACE 30 tonne WLL Hydraulic Drum Winch

Model Type: 567

  • Overall Dimensions: 4100mm long x 2520mm wide x 2100mm high
  • Maximum Wire Capacity: 1601 metres of 28mm wire rope
