40 - 65KW HPU

ACE 40kW Safe Area Open Loop Diesel HPU

ACE 40kW Safe Area Open Loop Diesel HPU

Model Type: 682

  • Overall Dimensions 2810mm x 1050mm x 1690mm
  • Maximum Rated Working Pressure 250 Bar
  • Maximum Oil Flow 69 L/min at 3000 RPM

ACE 40kW Safe Area Open Loop Diesel HPU

ACE 40kW Safe Area Open Loop Diesel HPU

Model Type: 1475

  • Overall Dimensions 2500mm x 1346mm x 1980mm
  • Maximum Rated Working Pressure 240 Bar
  • Maximum Oil Flow 100 L/min at 2000 RPM

ACE 40kW Safe Area Open Loop Diesel HPU

ACE 40kW Safe Area Open Loop Diesel HPU

Asset Type: 1491

  • Overall Dimensions 1800mm x 1070mm x 1790mm
  • Maximum Rated Working Pressure 320 Bar
  • Maximum Oil Flow 112 L/min at 2500 RPM

ACE 45kW Safe Area Open Loop Diesel HPU

ACE 45kW Safe Area Open Loop Diesel HPU

Model Type: 580

  • Overall Dimensions 2000mm long x 1020mm wide x 1650mm
  • High Maximum Rated Working Pressure 240 Bar
  • Maximum Oil Flow 118 L/min at 1500 RPM

ACE 47kW Safe Area Open Loop Diesel HPU

ACE 47kW Safe Area Open Loop Diesel HPU

Model Type: 1230

  • Overall Dimensions 2455mm long x 1050mm wide x 1680mm High
  • Maximum Rated Working Pressure 320 Bar
  • Maximum Oil Flow 112.5 L/min at 2500 RPM

ACE 47kW Zone 2 Open Loop Diesel HPU

ACE 47kW Zone 2 Open Loop Diesel HPU

Model Type: 1237

  • Overall Dimensions 2500mm long x 1320mm wide x 1910mm High
  • Maximum Rated Working Pressure 220 Bar
  • Maximum Oil Flow 245 L/min at 2200 RPM

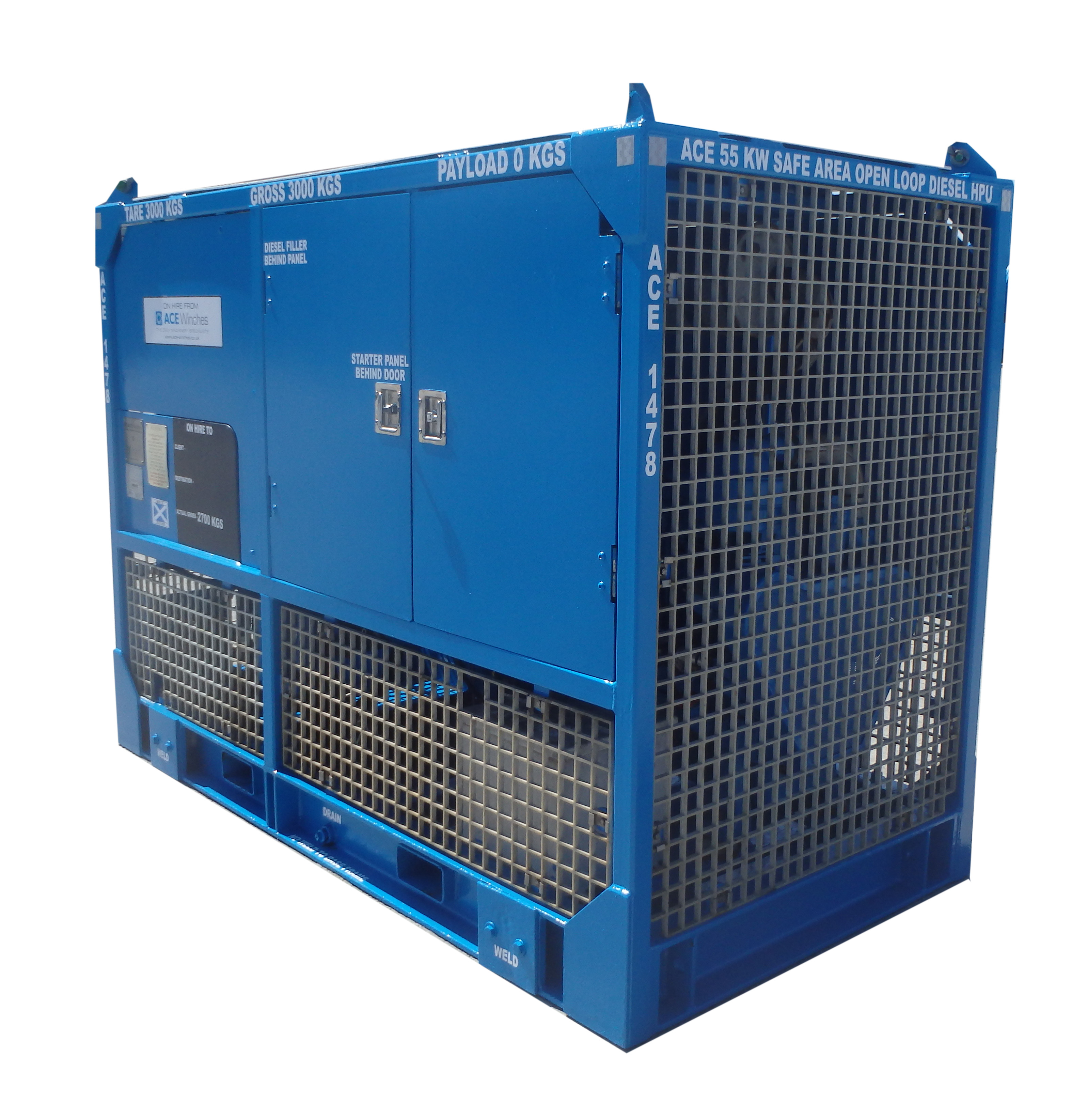

ACE 55kW Safe Area Open Loop diesel HPU

ACE 55kW Safe Area Open Loop diesel HPU

Model Type: 1478

  • Overall Dimensions 2500mm long x 1340mm wide x 1995mm
  • High Maximum Rated Working Pressure 240 Bar
  • Maximum Oil Flow 112 L/min at 2100 RPM

ACE 60kW Zone 2 Open Loop Diesel HPU

ACE 60kW Zone 2 Open Loop Diesel HPU

Model Type: 741

  • Overall Dimensions 2500mm long x 1316mm wide x 1910mm High
  • Maximum Rated Working Pressure 320 Bar
  • Maximum Oil Flow 235 L/min at 2100 RPM

ACE 60kW Zone 2 Open Loop Diesel HPU

ACE 60kW Zone 2 Open Loop Diesel HPU

Model Type: 1799

  • Overall Dimensions 2500mm long x 1316mm wide x 1910mm High
  • Maximum Rated Working Pressure 320 Bar
  • Maximum Oil Flow 132 L/min at 2200 RPM

ACE 65kW Zone 2 Open Loop Diesel HPU

ACE 65kW Zone 2 Open Loop Diesel HPU

Model Type: 1249

  • Overall Dimensions 2500mm long x 1360mm wide x 1910mm High
  • Maximum Rated Working Pressure 320 Bar
  • Maximum Oil Flow 246 L/min at 2200 RPM
